MWX6 Series

Skew between two cables is less than 1psec.

Highly precise skew matching cable assemblies with less than 1psec skew between the pair for measurement of digital transmissions. This cable series has low insertion loss, appropriate for measuring high-precision differential transmission signals. Four types of cables are available with a variety of frequencies (26.5GHz, 40GHz, 50GHz and 67GHz).

Cable Types & Maximum Frequency

MWX621 – 26.5GHz
MWX641 – 40.0GHz
MWX651 – 50.0GHz
MWX661 – 67.0GHz

Key Applications

  • Eye Diagram Analysis
  • Protocol Testing (USB, HDMI, Display Port)
  • Optical Transceiver Testing
  • BERT Measurement
  • Jitter Measurement

Key Features

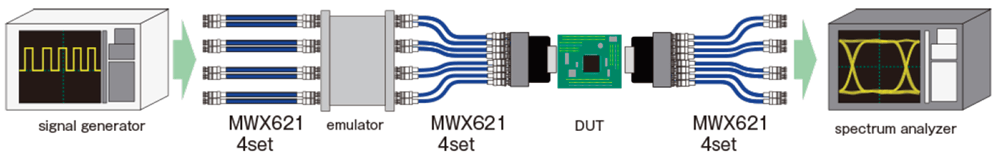

Test Set Up Example of MWX6 Series

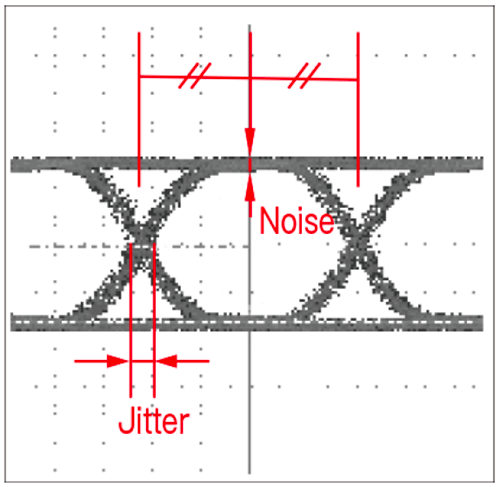

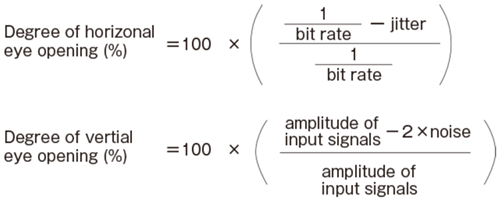

Eye Pattern & Junkosha’s Method of Calculating Degree of Eye Pattern

To measure pulse wave transmission characteristics, an experimental tool called “eye pattern” is observed.
Upon balanced transmission, skew (variability of propagation delay time) between the signal cables will become one of the cause of deterioration of the jitter.
Taking above into consideration, MWX6 series are designed and manufactured.

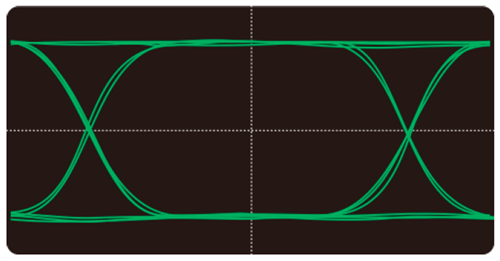

MWX6 Series

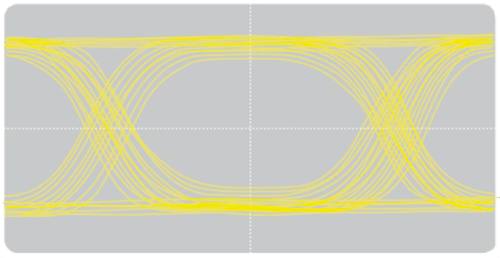

Conventional Product















Junkosha Products
