MWX061
Junkosha MWX061 is a part of the MWX0 Series – Enhanced Phase Stability for Precision Measurements.
Key Features
Flagship test grade cables, best fit for applications requiring high phase stability when subjected to bending and fluctuating temperatures in a microwave measurement environment up to 67 GHz. These cables are protected by armored sheathing for excellent mechanical properties.

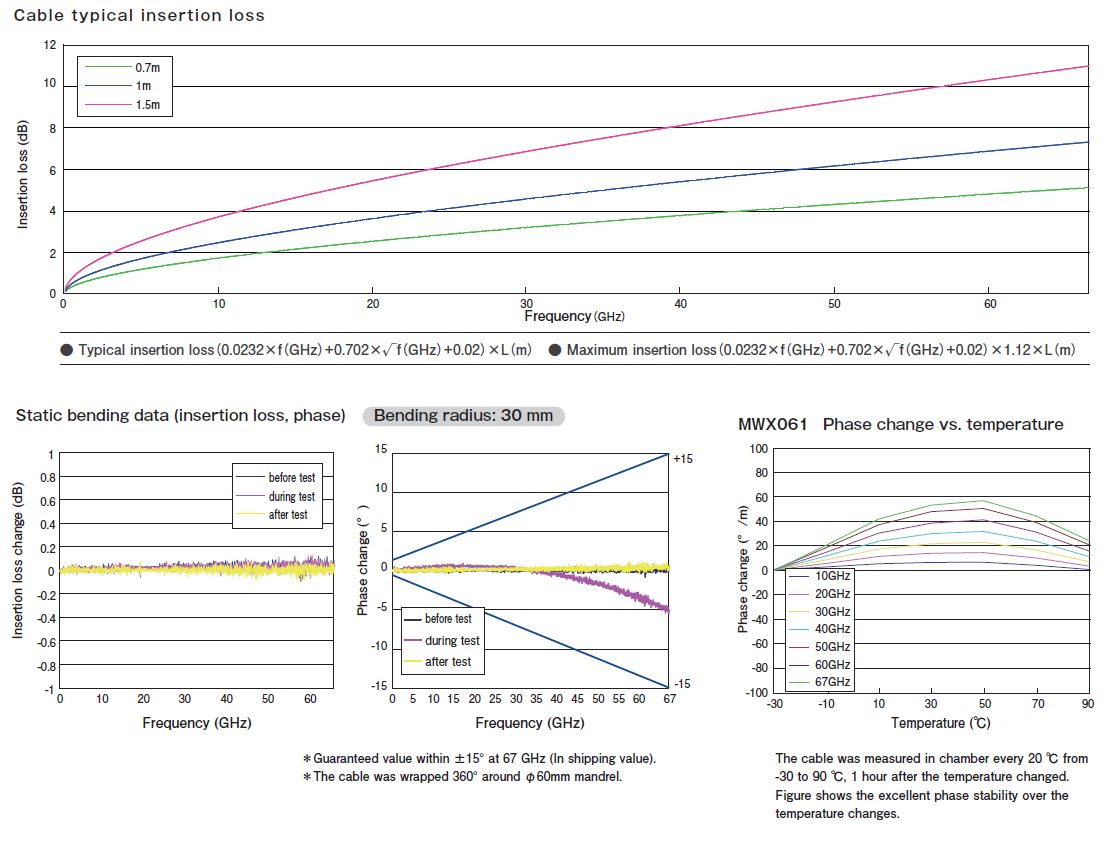

Technical Data
Electrical Properties
Maximum Operating Frequency: 67.0 GHz
Characteristic Impedance: 50±1 Ω
Capacitance (typ.): 90 pF / m
Propagation Delay (typ.): 4.35 ns / m
Wavelength Reduction Rate (typ.): 77%
Higher Mode Frequency (typ.): 70 GHz
VSWR (per connector / both ends of assy.): 1.21 / 1.46
Maximum Frequency Insertion Loss (67.0 GHz): 7.3 dB / m
Mechanical Properties
Cable Outer Diameter: 6.6 mm
Minimum Bending Radius (inner side): 30 mm
Cable Mass (typ.): 73 g/m
Continuous Operating Temperature Range: -30~+85°C
Armored Side Pressure: 196 N/cm
Assembly Length: 700~1,500 mm

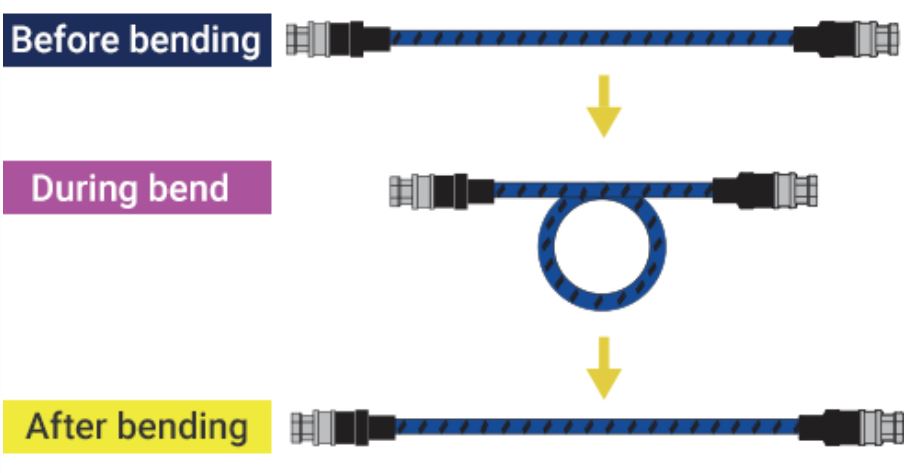

Static Bending
Insertion loss & phase change are measured through a cable that is connected to a measurement instrument. Both properties are measured under a bend condition using a 60mm mandrel.
