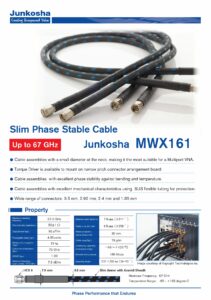

Cable Assemblies with a Small Diameter at the Neck

Junkosha’s MWX 161 stands out as a key phase stable cable for Multiport VNA applications due to the smaller diameter in the neck and the excellent phase stability against bending and temperature. Not only is the integrity of Junkosha’s flexible cables kept in tact, but also allows but more maneuverability to fight the phase stable cable in tight spaces. This cable has connectors ranging from 1.85mm to 3.5mm and can reach a frequency up to 67 GHz.



Key Features:

  • Slim and Low profile design ( Max ø7.9mm = smaller then HEX nut ), allowing screw driver torque wrench access in high density connections.
  • Phase stability and long lasting performance makes for less cable replacement and higher testing productivity.
  • Flexible & light weight
    • Operator friendly and avoids DUT damage.

Commonly Used In:

  • Multiport VNA like PXI and Streamline
  • Narrow pitch RF matrix switcher, Relay
  • Multiple connectors/ DUT testing board
  • Tandem, Quad probe pin

Electrical Properties

Frequency: 67GHz

Impedance: 50Ω

Capacitance: 90pF/m

Propagation Delay: 4.35ns/m

Velocity of Propagation: 77%

Higher Mode: 70GHz

VSWR (typ.): 1.30

[email protected]: 7.3dB/m

Mechanical Properties

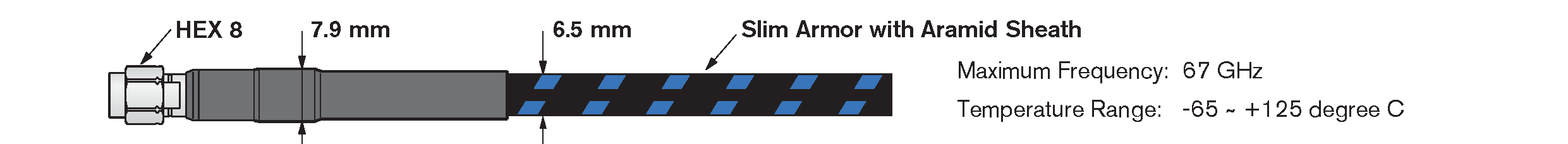

Cable O.D.: 6.5mm [0.256”]

Max. O.D.: 7.9mm [0.311”]

Min. Bend R: 30mm

Weight: 79g/m

Operating Temp.: -65~125℃

Crash Resistance: 196N/cm

Assy. Length: 600~1500 mm



How to Read the Part Number:

a: Cable

b: Assembly length

c: Connector Code I

d: Connector Code II

e: Armored



See what else Junkosha has to offer

Connector Types

3.5mm (Male) to 3.5mm (Male)

MWX161-00610DMSDMS/B

MWX161-00914DMSDMS/B

MWX161-01000DMSDMS/B

2.92mm (Male) to 2.92mm (Male)

MWX161-00610KMSKMS/B

MWX161-00914KMSKMS/B

MWX161-01000KMSKMS/B

2.92mm (Male) to 2.4mm (Male)

MWX161-00610KMSLMS/B

MWX161-00914KMSLMS/B

MWX161-01000KMSLMS/B

2.4mm (Male) to 2.4mm (Male)

MWX161-00610LMSLMS/B

MWX161-00914LMSLMS/B

1.85mm (Female) to 1.85mm (Male)

MWX161-00610VFSVMS/B

MWX161-00914VFSVMS/B

1.85mm (Male) to 1.85mm (Male)

MWX161-00610VMSVMS/B

MWX161-00914VMSVMS/B
