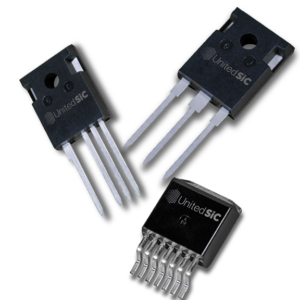

UnitedSiC 3rd Generation FETs Now Available

The 3rd generation 650V and 1200V SiC FETs from UnitedSiC deliver excellent switching speed, fast body diode, high temperature operation, low RDS(ON) and ruggedness that make them outstanding solutions for all switching circuit topologies.  These devices are ‘drop-in’ replacements for IGBT, Si-MOSFET, Super Junction MOSFET and SiC-MOSFET parts, and do not require changes to gate drive circuitry. Unique to these high performance packages are the 4-Lead Kelvin package which provides designers with very fast switching, high-power semiconductors in a package capable of high-power dissipation.





UnitedSiC FETs are:

  • Co-packaged high-performance Gen3 SiC JFETs with cascode optimized MOSFET
  • Only standard gate drive SiC device in the market today

Why the UJ3C & UF3C Series?

Key Features

  • Excellent body diode performance (Vf < 2V)
  • Drive with any Si and/or SiC gate drive voltage
  • High performance cascode configuration
  • Superior thermal performance
  • Integrated ESD and gate protection
  • Kelvin package (UF3C Fast series)
  • Drop-in Functionality without Changing Gate Drive Voltage
    (Replaces Si IGBTs, Si FETs, Super junction FETs and SiC MOSFETs

End Applications

  • Electric Vehicles
  • Battery Chargers
  • Telecom & Server PSU
  • Solar inverters
  • Energy storage
  • Motor drives

For More Information on UnitedSiC

United SiC’s Vice President of Engineering Anup Bhalla Discusses New Devices



Available Package Types

TO220-2L

Diodes

UJ3D06504TS

UJ3D06506TS

UJ3D06508TS

UJ3D06510TS

UJ3D06512TS

UJ3D06516TS

UJ3D06520TS

UJ3D06530TS

UJ3D1202TS

UJ3D1205TS

UJ3D1210TS

TO-220-3L

FETs

UJ3C065080T3S

UJ3C065030T3S

UF3C065040T3S

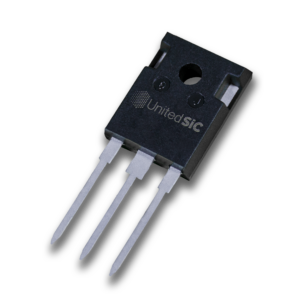

TO-247-3L

Diodes

UJ3D06520KSD

UJ3D06560KSD

UJ3D1210KS

UJ3D1210KSD

UJ3D1220KSD

UJ3D1250K

FETs

UJ3C065080K3S

UJ3C065030K3S

UF3C065040K3S

UF3C065030K3S

UJ3C120150K3S

UJ3C120080K3S

UJ3C120040K3S

UF3C120040K3S

JFETs

UJ3N065080K3S

UJ3N065025K3S

UJ3N120070K3S

UJ3N120035K3S

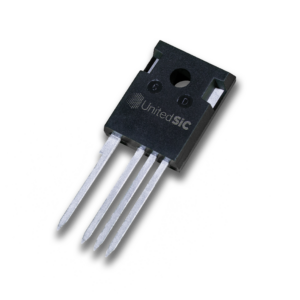

TO-247-4L

FETs

UF3C065080K4S

UF3C065040K4S

UF3C065030K4S

UF3C120150K4S

UF3C120080K4S

UF3C120040K4S

D2PAK-3L

FETs

UJ3C065080B3

UJ3C065030B3

UF3C065040B3

UF3C065030B3

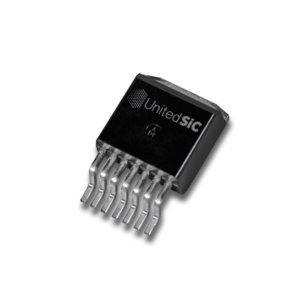

D2PAK-7L

FETs

UF3C065080B7S

UF3SC065040B7S

UF3SC065030B7S

UF3C120150B7S

UF3C120080B7S

UF3SC120040B7S
